Model No.: JYH32-3603000
Certification: CE, RoHS, FCC
Place Of Origin: Guangdong, China (Mainland)
Input Voltage: 100V-240V
Output Type: Single
Output Voltage: 5V-48V
DC Connector: 5.5*2.1/5.5*2.5mm
DC Cable: 1.2m 1.5m 1.8m 2m 3m
Warranty: 2 Years
Product Size: L140*W60.5*H34.5mm
Packaging: paper box
Brand: JYH or OEM
Place of Origin: China
Supply Ability: 20000pcs/day
HS Code: 8504401400

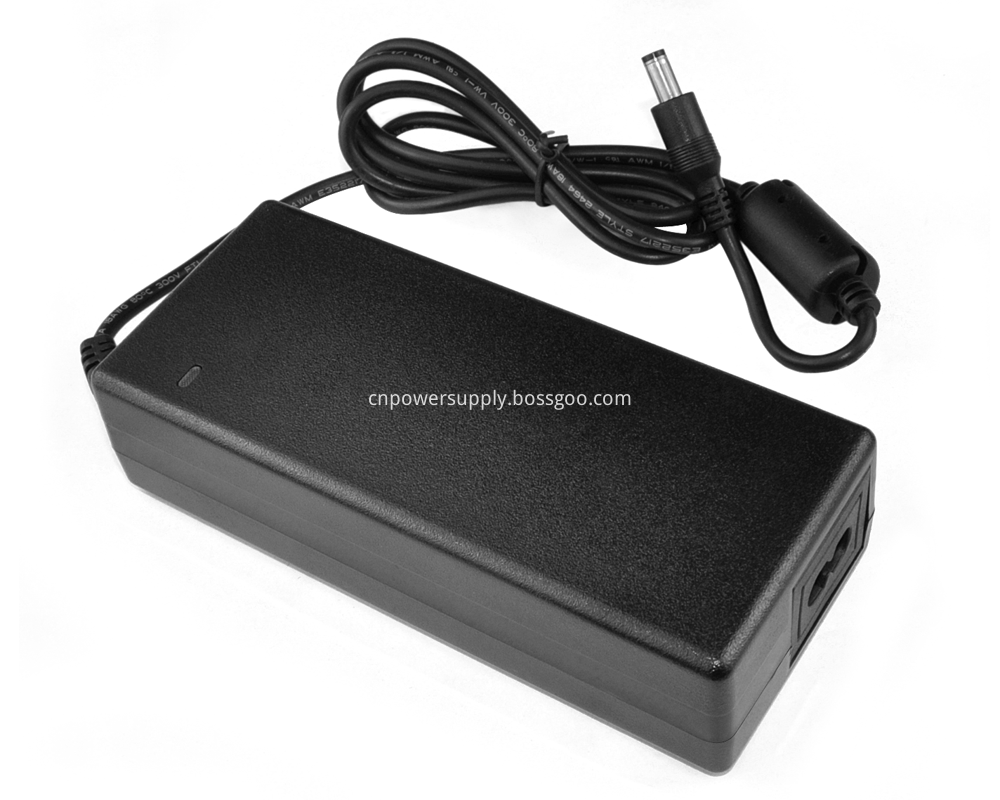

36V3A AC/DC power adapter Description :
AC input: 100-240Vac
Output: 36VDC 3A
100% high voltage test, 100% aging test, 100% full inspection
Built-in over current, over voltage, over load and short circuit protection
High precision, low ripple and low noise
Super-compact designed, light, handy and portable.
Multiple plug type: US/CN/EU/UK/BS/AU/KC/PSE
36V3A AC/DC power adapter Electrical:
Dielectric Withstand: 3,000VAC Primary-Secondary
Leakage Current: 0.25mA@2Pin
EMI Conduction & Radiation: Compliance to EN55022 EN55024 FCC Part 15B Class B
Harmonic Current: Compliance to EN61000-3-2
MTBF: 30,000 Calculated Hours at 25℃,by Telcordia SR-332
Output characteristics: constant current / constant voltage mode;
36V3A AC/DC power adapter DC connector:
