ac power adapter cannot be determined

Payment Type: L/C,T/T,D/P,Paypal
Incoterm: FOB,CFR,CIF,FCA
Min. Order: 500 Piece/Pieces
Delivery Time: 15 Days

Basic Info


Model No.: JYH32-1204000-Bz

Use: Desktop

Certification: CE, RoHS, FCC

Power: <300W

Feature: Wide

Place Of Origin: Guangdong, China (Mainland)

Type: Desktop

Input Voltage: 100V-240V

Output Type: Single

Output Voltage: 5V-48V

DC Connector: 5.5*2.1/5.5*2.5mm

DC Cable: 1.2m 1.5m 1.8m 2m 3m

Certificate: UL,CB,CE,FCC,GS,SAA,C-Tick,ROHS,KC

Warranty: 2 Years

Product Size: 114*50*31mm


Additional Info


Packaging: paper box

Productivity: 20000pcs/day

Brand: JYH or OEM

Transportation: Ocean,Land,Air

Place of Origin: China

Supply Ability: 20000pcs/day

Certificate: ISO14000

HS Code: 8504401400

Port: Shenzhen


Product Description

12V 4A Dc Power Supply Adapter 4000mA


12V 4A Dc Power Supply Adapter Description:

Our 12V 4A power supply is reliable switching power supply with high quality material, durable and safety in use. The power supply can keep the voltage stability. Universal AC input/full range, Full load burn-in test. Widely use for led strip lights and other device need constant voltage at the 12V such as CCTV camera, LED flexible strip, LED decorative lighting, street light, building lighting, LCD Monitors, LED display, industrial automation, home appliances and so on.




12V4A AC/DC universal switching power adapter

AC input 100-240Vac

Output: 9VDC 1A

100% high voltage test, 100% aging test, 100% full inspection

Built-in over current, over voltage, over load and short circuit protection

High precision, low ripple and low noise

Super-compact designed, light, handy and portable.

Multiple plug type: US/CN/EU/UK/BS/AU/KC/PSE


12V4A AC/DC power adapter specifications:

Input: 100-240Vac 50/60Hz

Output: 9V1A

Type: wall mount

Color: Black / white

Size: 60*39*27MM

Output loading precision: ±5%

Operating temperature: 0℃ -40℃, 5% -90% RH;

Storage temperature: -20℃ -85℃, 5% -95% RH;

Efficiency: Energy Star Level VI & ERP Stage 2 Certified

Certificate: CCC, UL, CE, FCC, CB, GS, SAA, C-tick, Rohs,

Protection: over current, over voltage, over load, short circuit protection


 12V 4000ma Power Supply Electrical:

Dielectric Withstand: 3,000VAC Primary-Secondary

Leakage Current: 0.25mA@2Pin

EMI Conduction & Radiation: Compliance to EN55022  EN55024 FCC Part 15B Class B

Harmonic Current: Compliance to EN61000-3-2

MTBF: 30,000 Calculated Hours at 25℃,by Telcordia SR-332

Output characteristics: constant current / constant voltage mode;



12V 4000mA AC/DC power adapter DC connector:

2.5*0.7*10mm,

3.5*1.35*10mm,

4.0*1.7*10mm,

5.5*2.1*10mm,

5.5*2.5*10mm,

AC cable plug for switching power adapterDC plug

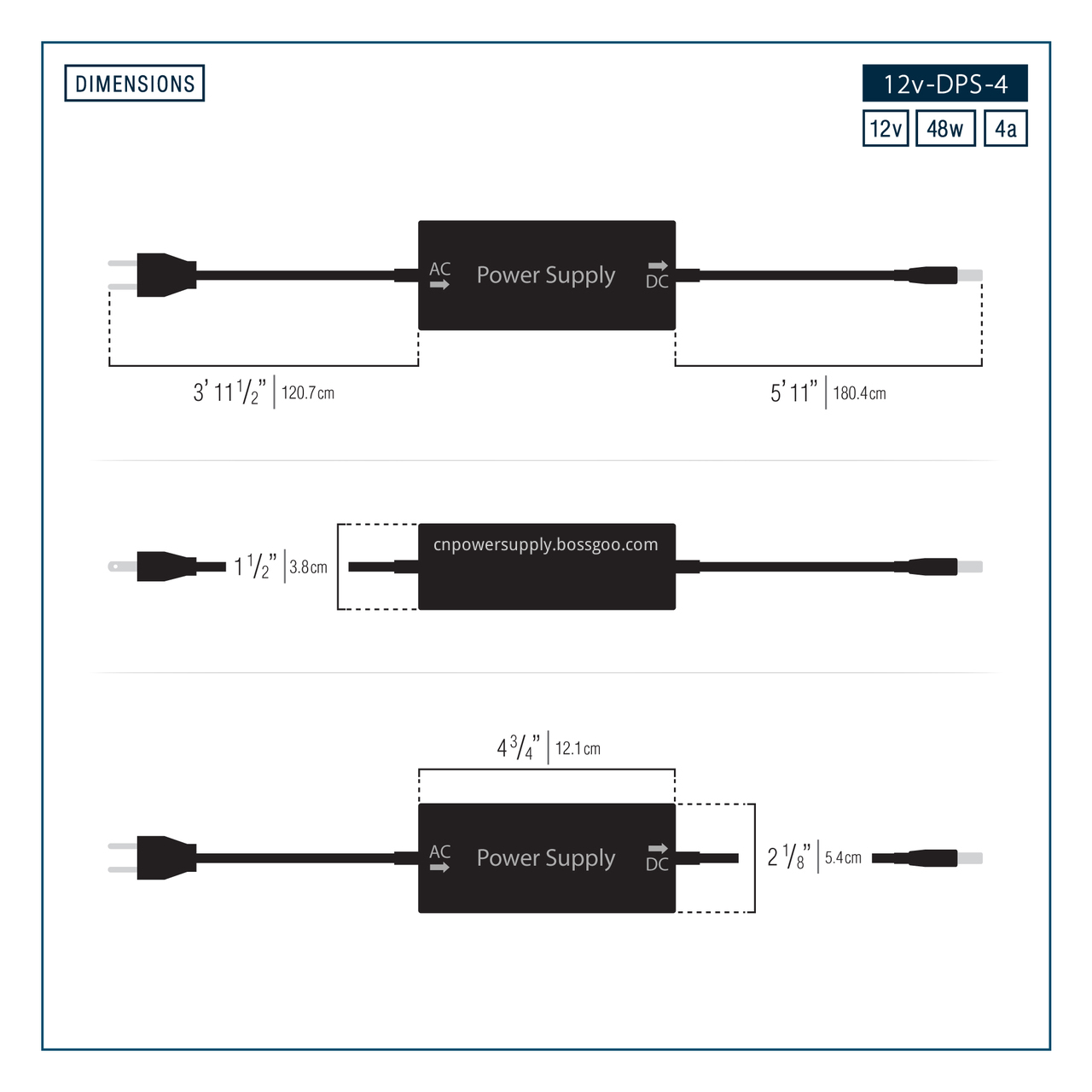

 images:

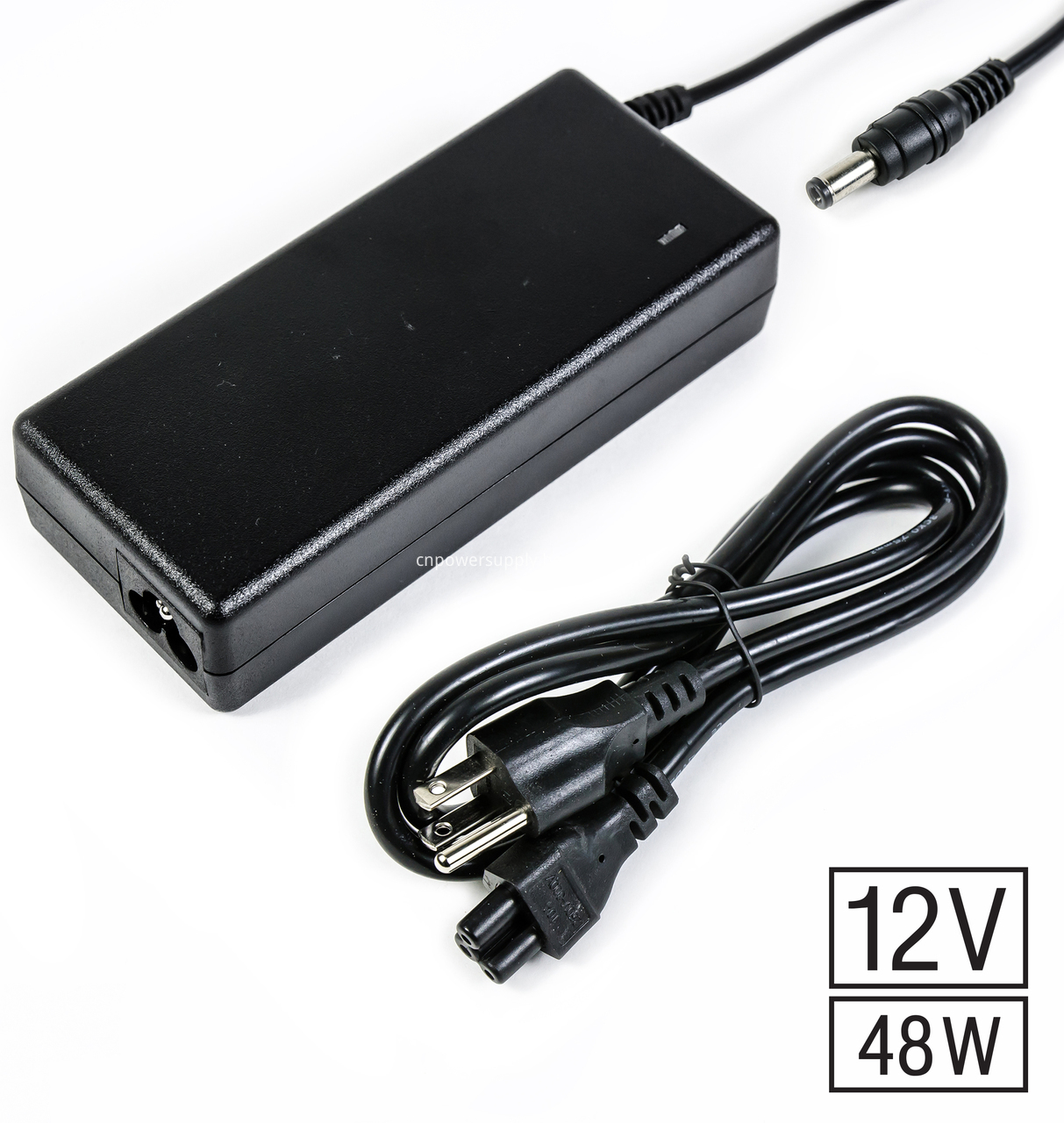

12v 4amp power supply

12v 4a power adapter

Company infomation :

Shenzhen Juyuanhai Electronic Co.,Ltd. was established in 2009, a professional manufacturer specialized in researching, producing and selling products like Switching power adapter, Car charger etc.So far our products have been exported to Europe, North America, Australia, Africa, Middle East and Southeast Asia. All our products enjoy very high reputation among our customers. Warmly welcome domestic and foreign customers to visit our factory and achieve win-win situation.

manufacturer

Certifications:



certificate




Packing & Shipping

Packing

Shipping




FAQ


1, What kind of company we are?

    We are professional power supply manufacturer with high reputation in this field.


2, How we control the quality?
    Aging test for 8 hours, after then we put them into the market.
3, Can we accept samples customized?
    No problem for samples order, and welcome your testing before your big order.
