CB IEC 42V2A 84W Power Supply Adapter

Payment Type: L/C,T/T,D/P,Paypal
Incoterm: FOB,CFR,CIF,FCA
Min. Order: 500 Piece/Pieces
Delivery Time: 15 Days

Basic Info


Model No.: JYH420CC200

Usage: Display, Switching, Laptop

Output Type: AC, Single

Certification: CCC, ISO9001, UL, ROHS, TUV

Color: Black

Type: OEM, Desktop

Connection: Desktop

Place Of Origin: Guangdong, China (Mainland)

Input Voltage: 100V-240V

DC Connector: 5.5*2.1/5.5*2.5mm

DC Cable: 1.2m 1.5m 1.8m 2m 3m

Warranty: 2 Years

Certificate: IEC60335-1:2010 IEC60335-1:2010/AMD1:2013 IEC6

Product Size: 140mm*60.5mm*34.5mm

Output Voltage: 42V


Additional Info


Packaging: paper box

Productivity: 20000pcs/day

Brand: JYH or OEM

Transportation: Ocean,Land,Air

Place of Origin: China

Supply Ability: 20000pcs/day

Certificate: ISO14000

HS Code: 8504401400

Port: Shenzhen


Product Description

CB IEC PSE UL 42V2A 84W Power Supply Adapter

IEC60335 42V2A 84W Adapter Description:

42V2A 84W power adapter meet many standards,such as IEC60335-1:2010,IEC60335-1:2010/AMD1:2013, IEC60335-2-29:2002,IEC60335-2-29:2002/AMD1:2004,IEC60335-2-29:2002/AMD2:2009, CB,PSE,etc.

This 42V2A IEC power adapter can be used in different products,like scooters,18650 battery pack,Lead-acid battery pack,garden tool,cleaning machines,electric power tool,unmanned aerial vehicle,GPS mapping machines,LED lighting, medical instruments, etc.


42V2A AC Power adapter data:

Universal AC input/ full range

Protections: Polarity Protection, over voltage protection.over current protection.overload protection.short circuit protection

Dielectric withstand: 3,000VAC promary-secondary

Leakage current: 0.25mA@2Pin

Efficiency: Energy star level VI&ERP stage 2 certified

EMI conduction & radiation: Compliance to EN55022 EN55024 FCC part 15B Class B

Harmonic current: Compliance to EN61000-3-2

MTBF; 30,000 calculated hours at 25℃, by Telcordia SR-332

Safety approvals: IEC60335-1:2010,IEC60335-1:2010/AMD1:2013, IEC60335-2-29:2002,IEC60335-2-29:2002/AMD1:2004,IEC60335-2-29:2002/AMD2:2009.


42V2A AC Adapter Specification:

Input voltage: 100-240Vac 50/60Hz 0.5A

Output voltage: 42V 2A  84W

Output loading precision: ±5%

Operating temperature: 0℃-40℃

Storage temperature: -20℃-80℃

Size: L140*W60.5*H34.5mm

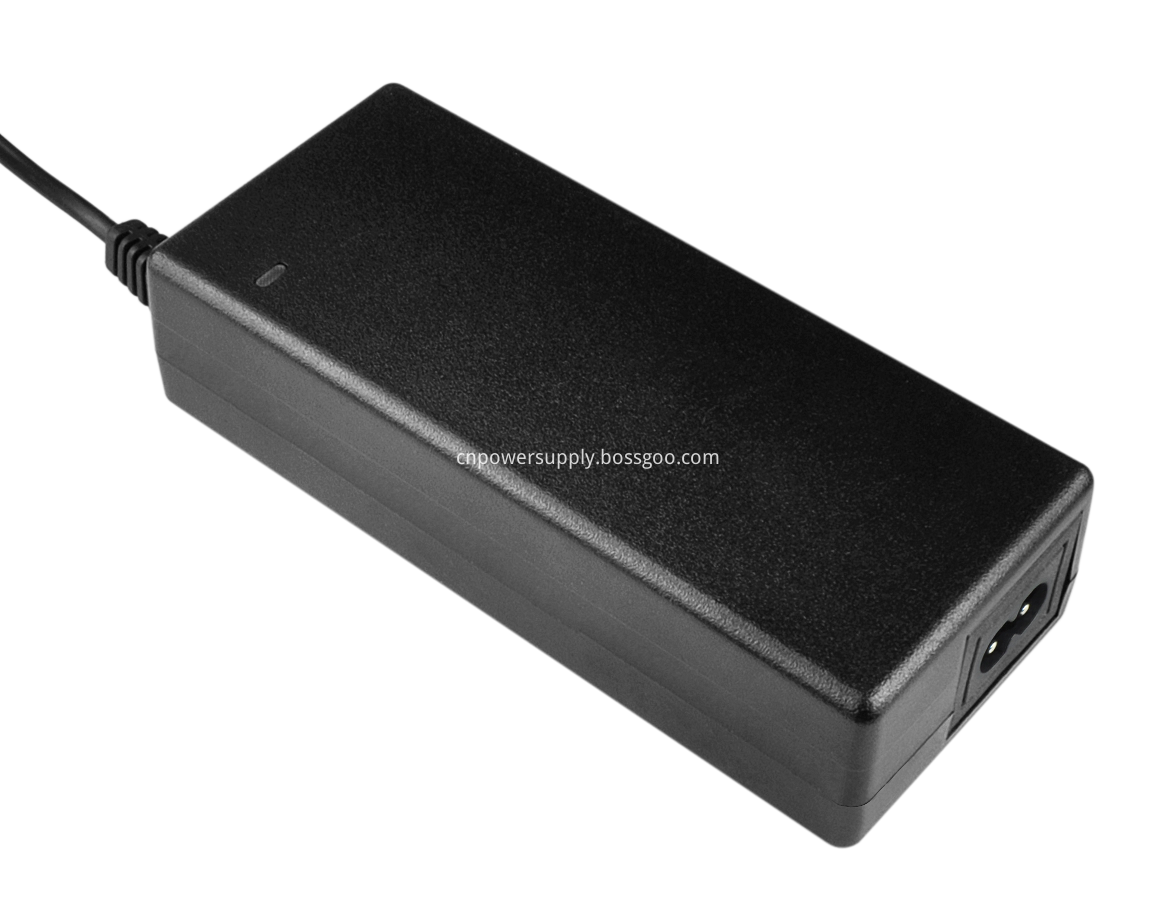

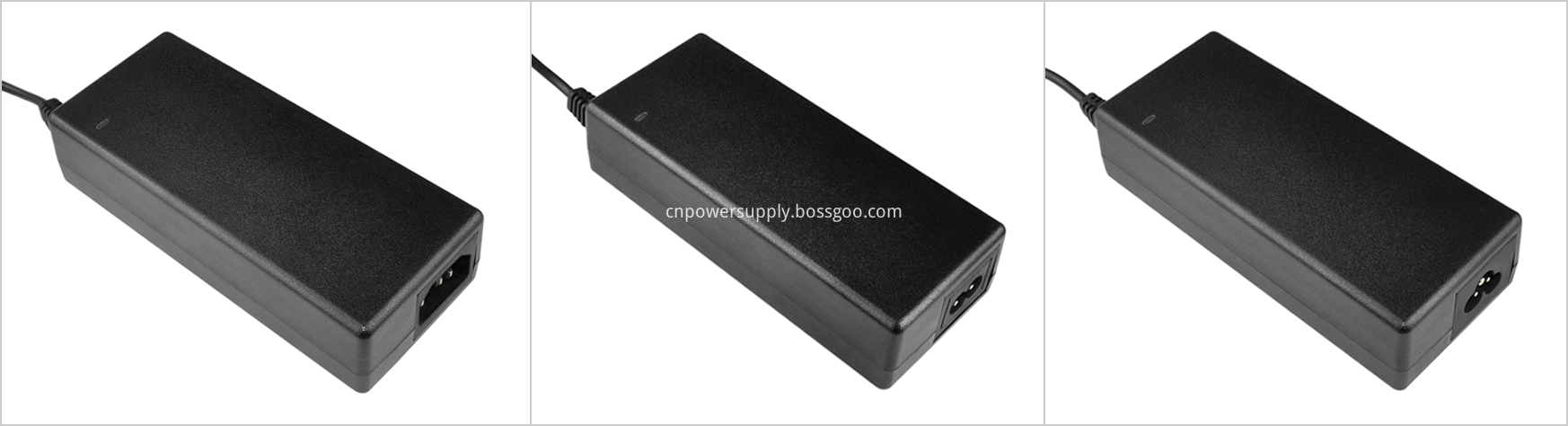

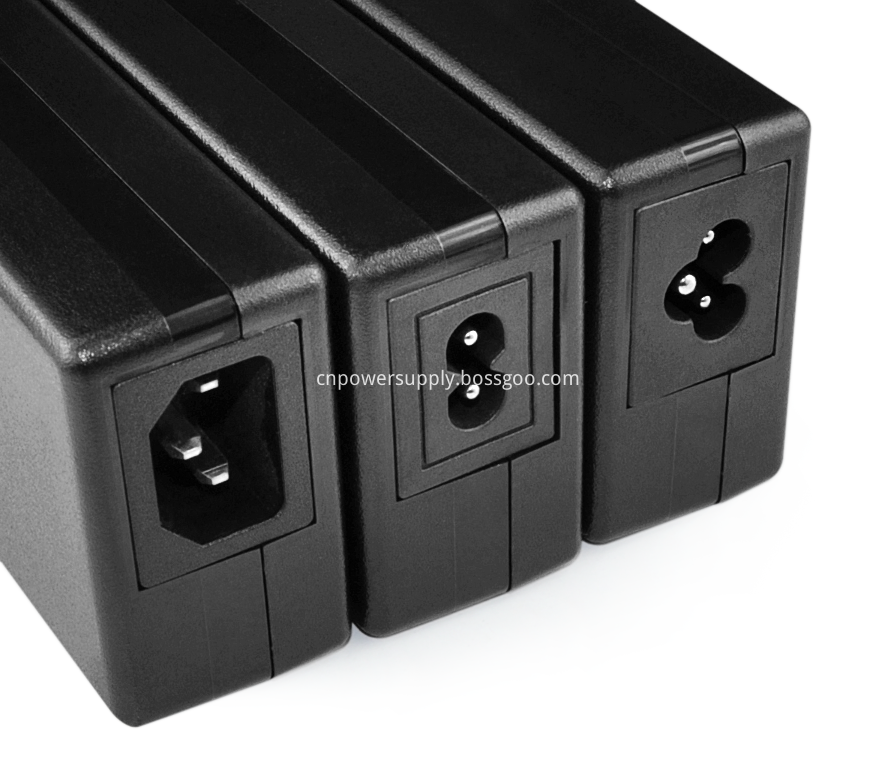

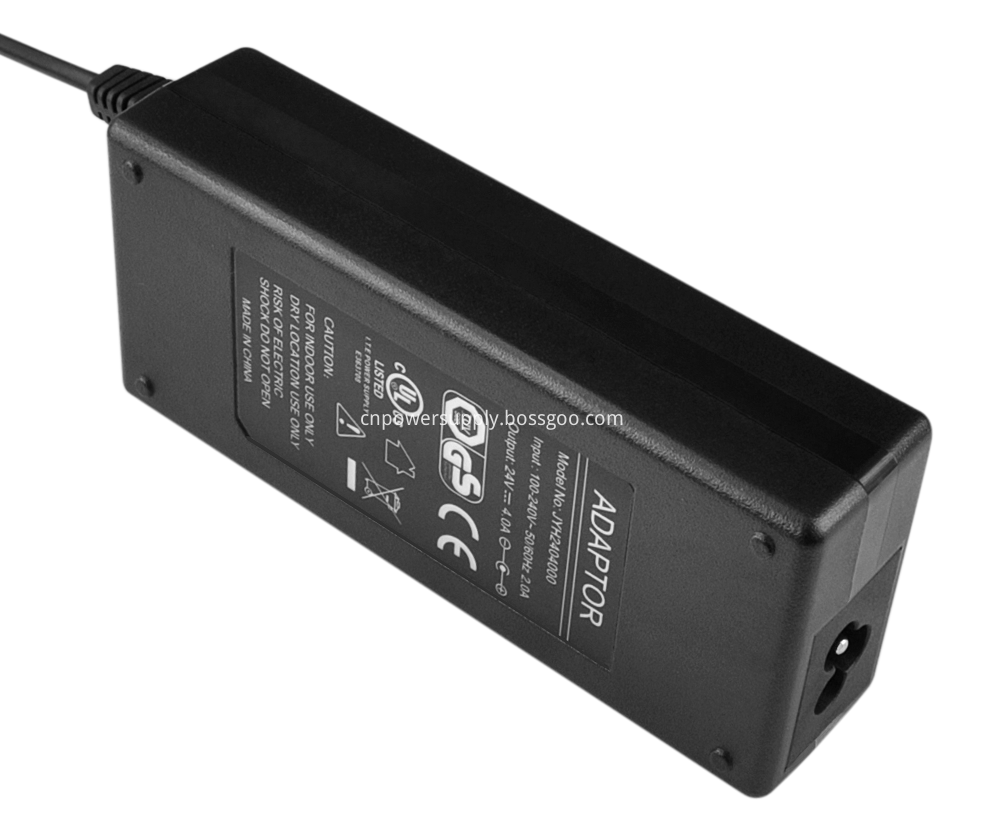

Products images:

42V2A AC DC Switching Power Supply Adapter42V2A Desktop AC AdapterIEC60335 CB Power Adapter 42V2A42V2A IEC60335 Power Supply

JYH power adapterAC SocketProtectionsDC connectorsHow to chose correct power adapterChose us


Learn more about our company.



certifivate

FAQ

1, What kind of company we are?

    We are professional power supply manufacturer with high reputation in this field.

2, How we control the quality?

    Aging test for 8 hours, after then we put them into the market.

3, Can we accept samples customized?

    No problem for samples order, and welcome your testing before your big order.

4, What about the production capacity?

    1-2 days for samples order under 10pcs, 7 days for general order under 10000pcs.

5, OEM and ODM are available?

    Yes, we accept customized products.

6, Will the delivery time be long for a big order?

    No, we have two special parts in production line, one for samples orders, another for big orders.

7, What is our warranty service?

    For all products we sell have 2 years warranty.
