|Min. Order:||500 Piece/Pieces|
|Delivery Time:||15 Days|
Model No.: JYH32-1903420
Usage: Display, Digital Camera, Game Player, Switching, Laptop
Output Type: DC, Single
Type: OEM, Desktop
Internal Structure: Linear Model
Place Of Origin: Guangdong, China (Mainland)
Input Voltage: 100V-240V
Output Voltage: 5V-48V
DC Connector: 5.5*1.7mm
DC Cable: 1.2m 1.5m 1.8m 2m 3m
Warranty: 2 Years

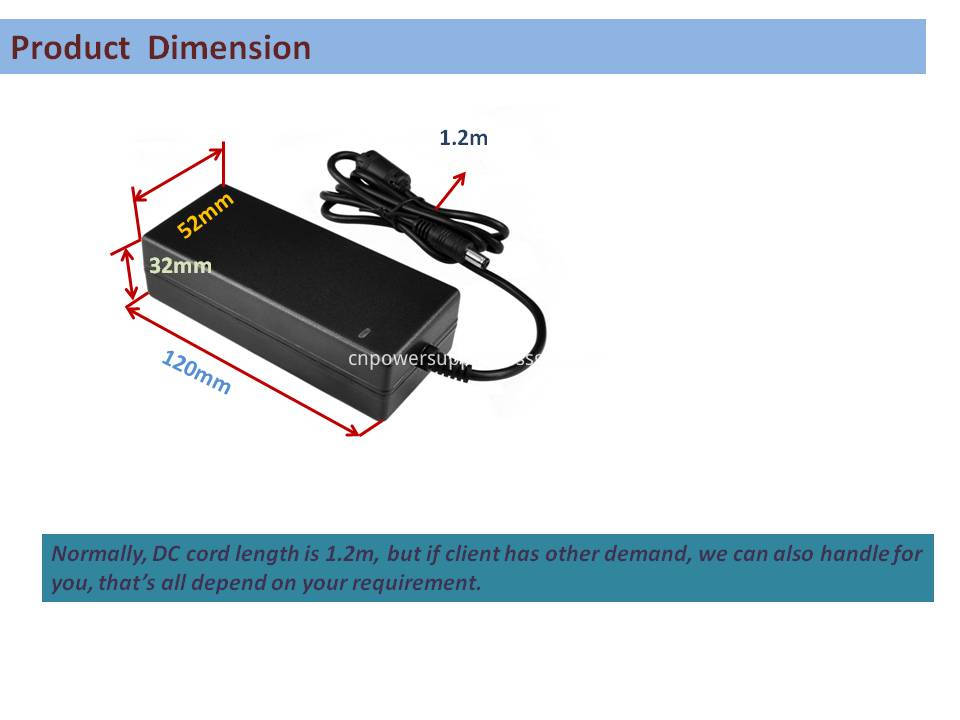

Product Size: L120*W52*H32mm
Packaging: paper box
Brand: JYH or OEM
Place of Origin: China
Supply Ability: 20000pcs/day
HS Code: 8504401400
Good Quality 19V3.42A 65W Laptop Use Power Adapter
Good Quality 19V3.42A 65W Laptop Use Power Adapter Description:
DC output 19v3.42a, rated power output is 65W, can be used in mainly brand laptop, this power adapter has many merits, such as high performance and good cost efficiency; long working hours, low nosie. Universal voltage input, 100vac-240Vac, apply into any country, DC cable length from 1.2m-3m for selection; DC jack size does have kinds specification for selection.
|Input voltage||100Vac240Vac 50/60 Hz 0.5A|
|No load power consumption||<0.21W|
|Output loading precision||±5%|
|Dielectric withstand||3,000Vac primary-secondary|
Short circuit protection
Over voltage protection
Over current protection
|Certification approvals||UL/CUL/FCC/CCC/CB/CE/SAA/C-Tick/ROHS/CEC.DOE VI|

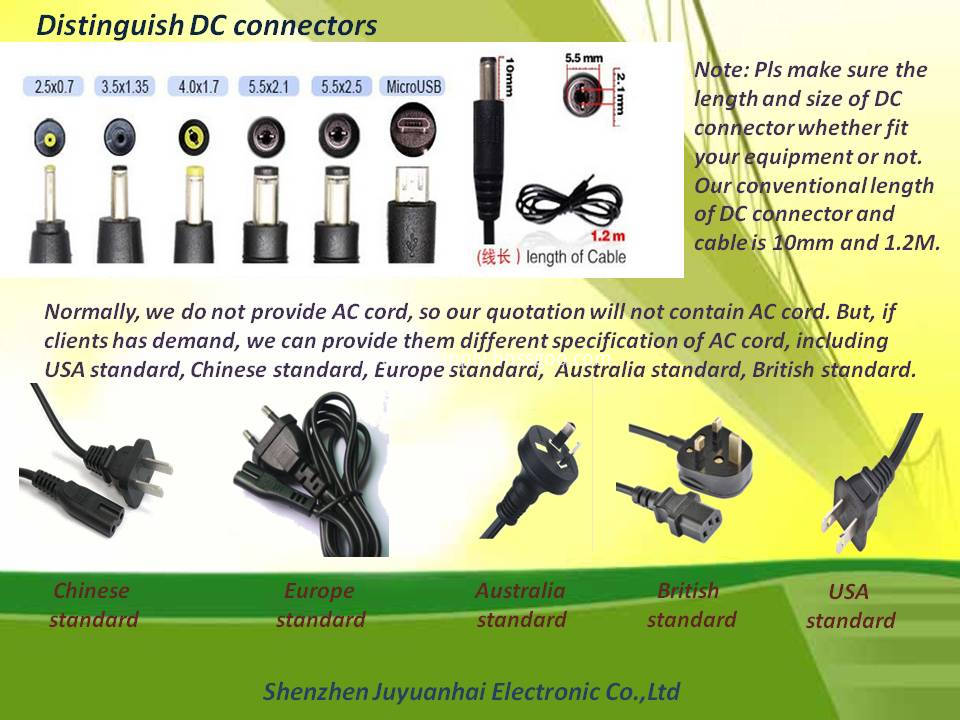

1. Current normally used DC connector specifications as below:
1) 2.5*0.7(outside diameter*inside diameter, similarly hereinafter), for short DC2507, mostly used for small size electronic products, such as panel computer that is due to volume limitations, at present, famous brand panel computer almost adopt MicroUSB connectors to charge.
2)3.5*1.35(DC35135): mostly used for set-top box, USB HUB external power supply, IP camera(AKA webcam, the industry calls it a head machine), LED desk lamp.
3)4.0*1.7(DC4017): mostly used for mobile DVD, EVD, PSP, a part of set-top box.
4)5.5*2.1(DC5521): current mostly used is DC round connector. Security monitor, a part of set-top box, LED desk lamp, digital home appliance etc.
5) 5.5*2.5(DC5525): Mainly used for equipments that power is a little bit bigger. Some certain laptop computer, electronic bicycle etc. This kind connector can be also uesd in DC5521 female socket.
2. DC connectors of specification for normally used products as below:
Panel computer: 2.5*0.7mm
Set-top box: 3.5*1.35mm 4.0*1.7mm 5.5*2.1m
Router: 3.5*1.35mm 4.0*1.7mm 5.5*2.1mm 5.5*2.5mm
Due to different manufacturers may produce same kind equipment, but it cause the DC connector and female plug in the equipment have difference, pls check what kind of DC connector you need before you decide to buy it!
Except above products, desktop power adapter is widely used in ITE products, office working series products, consummer electronic products, industry use products, household products etc.
1, What kind of company we are?We are professional power supply manufacturer with high reputation in this field.
2, How we control the quality?Aging test for 8 hours, after then we put them into the market.
3, Can we accept samples customized?No problem for samples order, and welcome your testing before your big order.
4, What about the production capacity?1-2 days for samples order under 10pcs, 7 days for general order under 10000pcs.
5, OEM and ODM are available?Yes, we accept customized products.
6, Will the delivery time be long for a big order?No, we have two special parts in production line, one for samples orders, another for big orders.
7, What is our warranty service?For all products we sell have 2 years warranty.
