Model No.: JYH32-1952310
Usage: Display, Switching, Laptop
Output Type: DC, Single
Certification: CCC, UL, ROHS, TUV
Place Of Origin: Guangdong, China (Mainland)
Input Voltage: 100V-240V
Output Voltage: 5V-48V
DC Connector: 5.5*2.1/5.5*2.5mm
DC Cable: 1.2m 1.5m 1.8m 2m 3m
Warranty: 2 Years

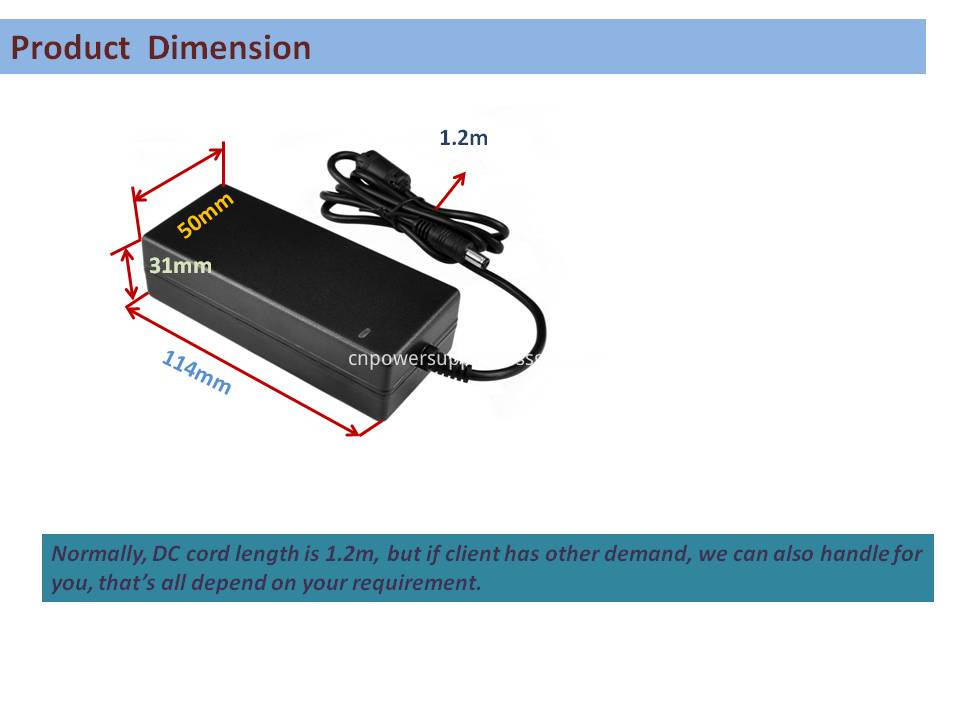

Product Size: L114*W50*H31mm
Packaging: paper box
Brand: JYH or OEM
Place of Origin: China
Supply Ability: 20000pcs/day
HS Code: 8504401400
High Quality DC Output 19.5V2.31A Laptop Power Adapter
High Quality DC Output 19.5V2.31A Laptop Power Adapter Description:
JYH 19.5V series power adapter can provide constant and stable power for your laptop and other electronic products, it is an ideal solution to tackle your power supply problem. Universal 100-240Vac input satisfy any country, max 45W output. Different DC cable length give you various choice option, mainstream DC plug size also fulfill your requirements.
PE bag+white box is standard package, if you need customized package, we can also handle for you, that's all depend on clients.
|Input voltage||100Vac240Vac 50/60 Hz 0.5A|
|No load power consumption||<0.075W|
|Output loading precision||±5%|
|Dielectric withstand||3,000Vac primary-secondary|
Short circuit protection
Over voltage protection
Over current protection
|Certification approvals||UL/CUL/FCC/CCC/CB/CE/SAA/C-Tick/ROHS/CEC.DOE VI|
1. Current normally used DC connector specifications as below:
1) 2.5*0.7(outside diameter*inside diameter, similarly hereinafter), for short DC2507, mostly used for small size electronic products, such as panel computer that is due to volume limitations, at present, famous brand panel computer almost adopt MicroUSB connectors to charge.
2)3.5*1.35(DC35135): mostly used for set-top box, USB HUB external power supply, IP camera(AKA webcam, the industry calls it a head machine), LED desk lamp.
3)4.0*1.7(DC4017): mostly used for mobile DVD, EVD, PSP, a part of set-top box.
4)5.5*2.1(DC5521): current mostly used is DC round connector. Security monitor, a part of set-top box, LED desk lamp, digital home appliance etc.
5) 5.5*2.5(DC5525): Mainly used for equipments that power is a little bit bigger. Some certain laptop computer, electronic bicycle etc. This kind connector can be also uesd in DC5521 female socket.
2. DC connectors of specification for normally used products as below:
Panel computer: 2.5*0.7mm
Set-top box: 3.5*1.35mm 4.0*1.7mm 5.5*2.1m
Router: 3.5*1.35mm 4.0*1.7mm 5.5*2.1mm 5.5*2.5mm
Due to different manufacturers may produce same kind equipment, but it cause the DC connector and female plug in the equipment have difference, pls check what kind of DC connector you need before you decide to buy it!
Except above products, desktop power adapter is widely used in ITE products, office working series products, consummer electronic products, industry use products, household products etc.
2, How we control the quality?Aging test for 8 hours, after then we put them into the market.
3, Can we accept samples customized?No problem for samples order, and welcome your testing before your big order.
4, What about the production capacity?1-2 days for samples order under 10pcs, 7 days for general order under 10000pcs.
5, OEM and ODM are available?Yes, we accept customized products.
6, Will the delivery time be long for a big order?No, we have two special parts in production line, one for samples orders, another for big orders.
7, What is our warranty service?For all products we sell have 2 years warranty.
