Model No.: JYH4801980
Place Of Origin: Guangdong, China (Mainland)
Input Voltage: 100V-240V
Output Type: Single
Output Voltage: 5V-48V
DC Connector: 5.5*2.1/5.5*2.5mm
DC Cable: 1.2m 1.5m 1.8m 2m 3m
Warranty: 2 Years
Product Size: L140*W60.5*H34.5mm
Packaging: paper box
Brand: JYH or OEM
Place of Origin: China
Supply Ability: 20000pcs/day
HS Code: 8504401400
Qualified Power Adapter With Output 48V1.98A
Qualified Power Adapter With Output 48V1.98A description:
Power adapter can be used in many fields, no matter home appliance or office use, it can be fulfilled. As for transformer and stabilization equipment to provide power. Normally, it is made up by shell, DC cord, AC cord and inside electronic components. JYH power adapter all procure qualified material from domestic factory, we strictly supervise quality of power adapter itself.
Power adapter with DC output 48v1.98a, max power could be up to 95W, fulfill related small size electronic products. SCP/OLP/OVP/OCP, along with international safety certification could guaranteen the quality of products.
Generally, DC cord is 1.2m and AC cord is not a standard configuration, but, if client has special demand, we can also handle, that's all depend on clients.
48V1.98A dc Power adapter data:
Universal AC input/ full range
No load power consumption＜0.21W
ERP step 2 compliant

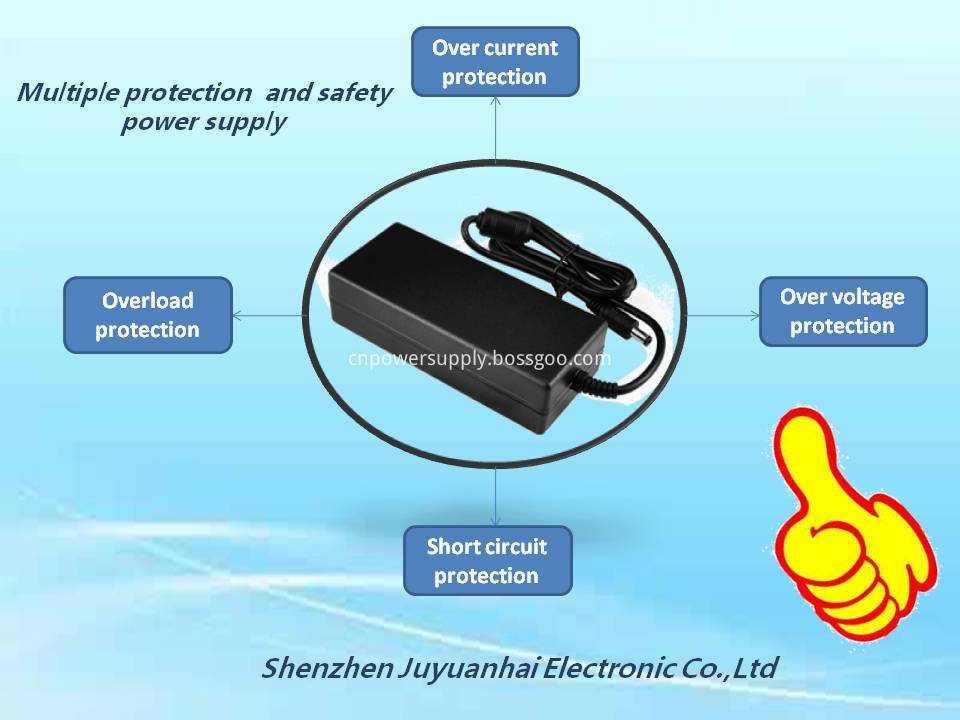

Protections: over voltage protection.over current protection.overload protection.short circuit protection
Dielectric withstand: 3,000VAC promary-secondary
Leakage current: 0.25mA@2Pin
Efficiency: Energy star level VI&ERP stage 2 certified
EMI conduction & radiation: Compliance to EN55022 EN55024 FCC part 15B Class B
Harmonic current: Compliance to EN61000-3-2
MTBF; 30,000 calculated hours at 25℃, by Telcordia SR-332
Input voltage: 100-240Vac 50/60Hz 0.5A
Output voltage: 48V 1.98A
Output loading precision: ±%5
Operating temperature: 0℃-40℃
Storage temperature: -20℃-80℃
Laptop,LED lighting,Audio and video products, home appliance,Industrial automation,communications, LED Strip WS2811 WS2812 WS2801 WS2812B,etc.
Learn more about desktop power adapter.

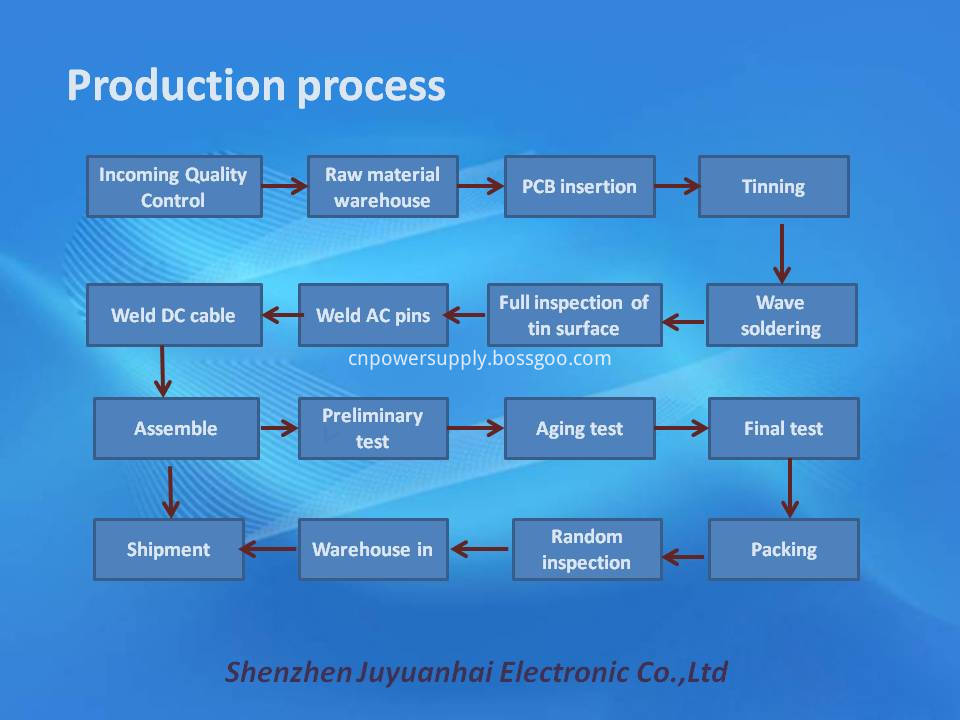

2, How we control the quality?Aging test for 8 hours, after then we put them into the market.
3, Can we accept samples customized?No problem for samples order, and welcome your testing before your big order.
4, What about the production capacity?1-2 days for samples order under 10pcs, 7 days for general order under 10000pcs.
5, OEM and ODM are available?Yes, we accept customized products.
6, Will the delivery time be long for a big order?No, we have two special parts in production line, one for samples orders, another for big orders.
7, What is our warranty service?For all products we sell have 2 years warranty.
