Model No.: JYH1803000
Usage: Display, Switching, Laptop
Output Type: DC, Single
Certification: CCC, UL, ROHS, TUV
Place Of Origin: Guangdong, China (Mainland)
Input Voltage: 100V-240V
Output Voltage: 5V-48V

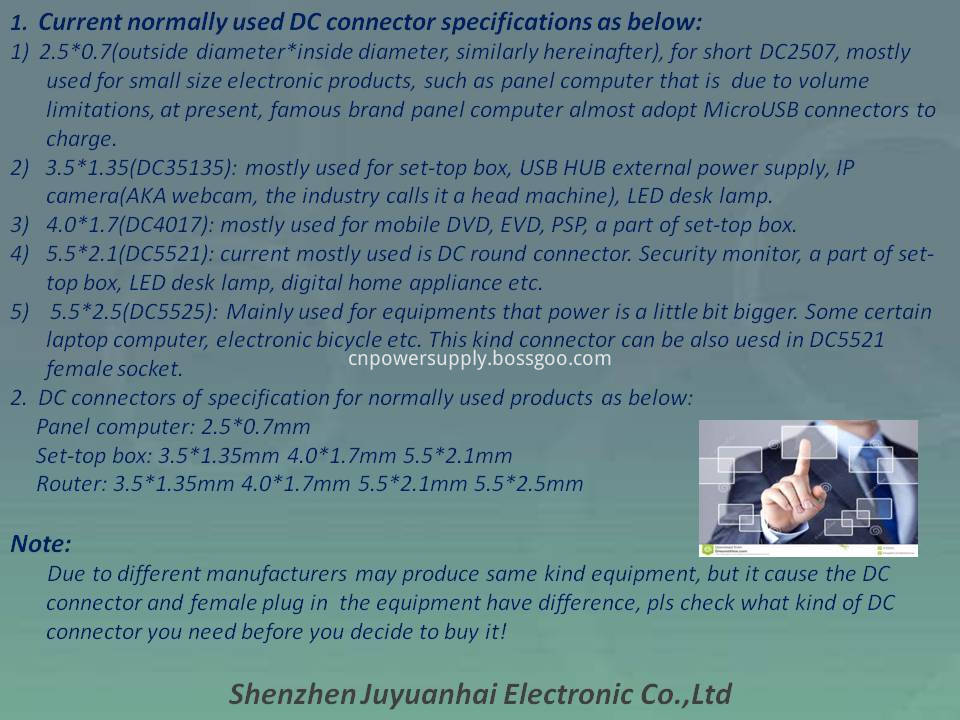

DC Connector: 5.5*2.1/5.5*2.5mm
DC Cable: 1.2m 1.5m 1.8m 2m 3m
Warranty: 2 Years
Product Size: L114*W50*H31mm
Packaging: paper box
Brand: JYH or OEM
Place of Origin: China
Supply Ability: 20000pcs/day
HS Code: 8504401400
Shenzhen Origin Produced 18V3A Power Supply Adapter
Shenzhen Origin Produced 18V3A Power Supply Adapter Description:
18V3A output JYH series power adapter, satisfy worldwide voltage input 100v-240v, any country can apply it, you just need to pick up a AC cord with a suitable plug. Qualified material and electronic components guarantee the adapter`s quality and performance. SCP, OLP, OVP, OCP, making sure you are away from unpredictable accident. No matter it is used in household, office, or industrial use, it will satisfy your requirements. Due to we purchase material from our long term cooperation supplier, so we could provide you a decent price.
18V3A dc Power adapter data:
Universal AC input/ full range
No load power consumption＜0.075W
ERP step 2 compliant
Protections: over voltage protection.over current protection.overload protection.short circuit protection
Dielectric withstand: 3,000VAC promary-secondary
Leakage current: 0.25mA@2Pin
Efficiency: Energy star level VI&ERP stage 2 certified
EMI conduction & radiation: Compliance to EN55022 EN55024 FCC part 15B Class B
Harmonic current: Compliance to EN61000-3-2
MTBF; 30,000 calculated hours at 25℃, by Telcordia SR-332
Input voltage: 100-240Vac 50/60Hz 0.5A
Output voltage: 18V 3A
Output loading precision: ±5%
Operating temperature: 0℃-40℃
Storage temperature: -20℃-80℃
Laptop,LED lighting,Audio and video products, home appliance,Industrial automation,communications, LED Strip WS2811 WS2812 WS2801 WS2812B,etc.
Learn more about desktop power adapter.
2, How we control the quality?Aging test for 8 hours, after then we put them into the market.
3, Can we accept samples customized?No problem for samples order, and welcome your testing before your big order.
4, What about the production capacity?1-2 days for samples order under 10pcs, 7 days for general order under 10000pcs.
5, OEM and ODM are available?Yes, we accept customized products.
6, Will the delivery time be long for a big order?No, we have two special parts in production line, one for samples orders, another for big orders.
7, What is our warranty service?For all products we sell have 2 years warranty.
